CHIMENEA DE AIREACIÓN NORMAL

The use of roof vents allows for the ventilation of the waterproofing membranes. They are made of high-density polyethylene.

Technical documentation

  • Logo Facebook
  • Logo Twitter
  • Logo Linkedin
  • Advantages
  • Application
  • Storage
• Resistant to U.V. rays
• Weather resistant and resistant to corrosion
• Easy to install
• Totally finished and complete
· To ventilate the roof. Allows evaporation of water vapour trapped in the support.

· APPLICATION METHOD:
1. Make a circular cut in the waterproofing membrane and remove it.
2. Place the roof vent on the support.
3. Have a rectangular reinforcement of the membrane that is large enough to cover the cut section in item 1, and insert it through the hole in the center of the vent.
4. Weld the reinforcement with the vent and the waterproofing membrane with a flame.
5. Protect the vent elbow fittings with another reinforcement in the shape of a collar.

· QUANTITY REQUIRED:
- It is recommended to use one roof vent for every 40 m²..

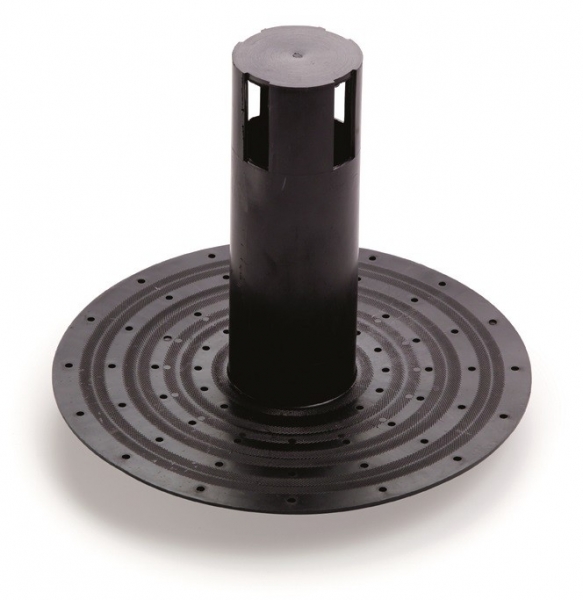

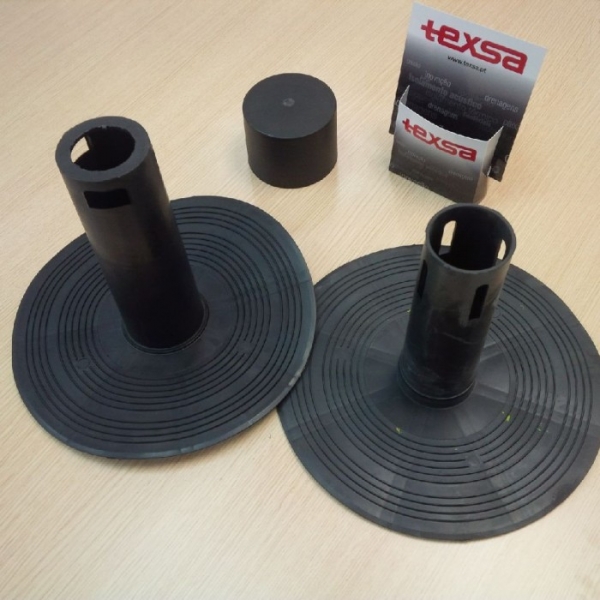

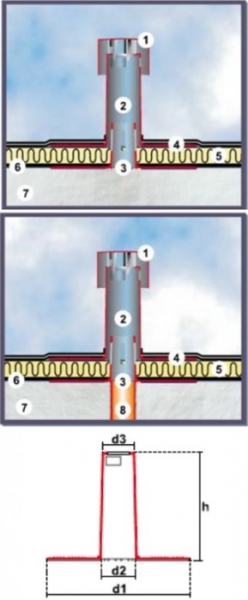

The roof vent consists of a circular base, a cylindrical tube and a cap.
Base diameter: 300 mm
Vent diameter: 75 mm
Vent height: 225 mm
