TEXSILEN

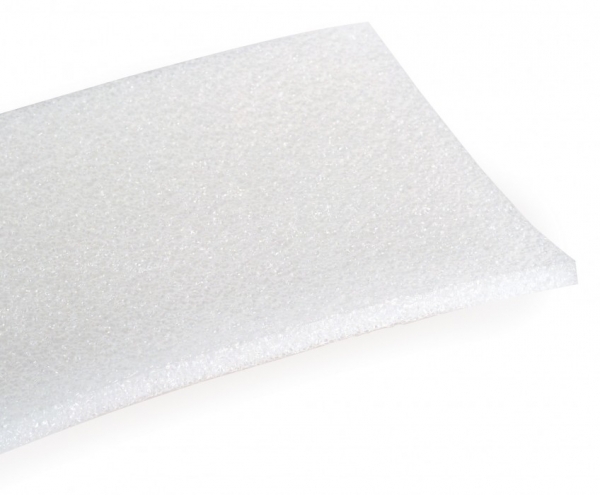

Texsilen is polyethylene foam closed cell membrane, 3 and 5 mm thick, for the impact noise insulation in all types of floors. In the “plus” version it is available in 5 and 10 mm in thickness, providing a high level of compressive stength and excellent acoustic insulation characteristics.

Technical documentation

  • Logo Facebook
  • Logo Twitter
  • Logo Linkedin
  • Advantages
  • Application
  • Installation
  • Storage
  • Regulations
· Light, easy to handle, easy to cut and adapt to all surfaces.
· High impact noise insulation capacity.
· Waterproof.
· Excellent thermal insulation.
· High resistance to water vapour.
· Rot-proof.
· Recyclable.
· Resistant to the majority of chemical agents.
· Impact noise insulation in floors:
- Traditional, under concrete
- Parquet and floating wood floors
· Separating/insulating element, for applications that require disconnection between structural elements without the load.
· Fitting: pull out the the TEXSILEN membrane over the surface to be insulated, overlapping by at least 5 cm as it becomes necessary. Bring the TEXSILEN up against the vertical surfaces, raising it approximately 10 cm, and then trimming the excess material.
Once installation is complete, the reinforced compression layer, with a minimum thickness of 4 cm, can be laid (over the TEXSILEN) as a support for the flooring (tile, carpeting, etc.).
For direct placement under parquet or floating wood floors, the membrane is placed with butt joints to avoid an uneven finish.
· Support: must be level and unwrinkled.
· Quantity required: 1 m2 of TEXSILEN covers approximately 0.95 m2 of surface area, including overlaps.
Roll: 1.60 m x 150 m
m² pallet: 240
· In accordance with the following norms: CTE-DB-HR, EN ISO 140-1, EN ISO 140-3, EN ISO 140-6, EN ISO 140-8, EN 20140-2 and EN ISO 717/1/2.
· Quality System in accordance with ISO:9001
